DAREU A710 Wireless Headset User Guide

11/08/2023

DAREU A710 Wireless Headset User Guide

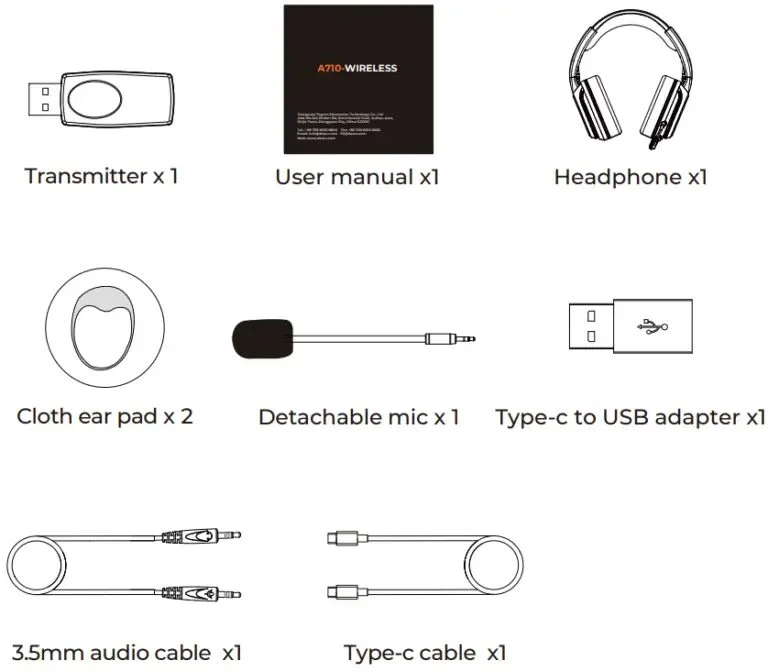

  1. Included Accessories

Hướng dẫn sử dụng tai nghe không dây DAREU A710

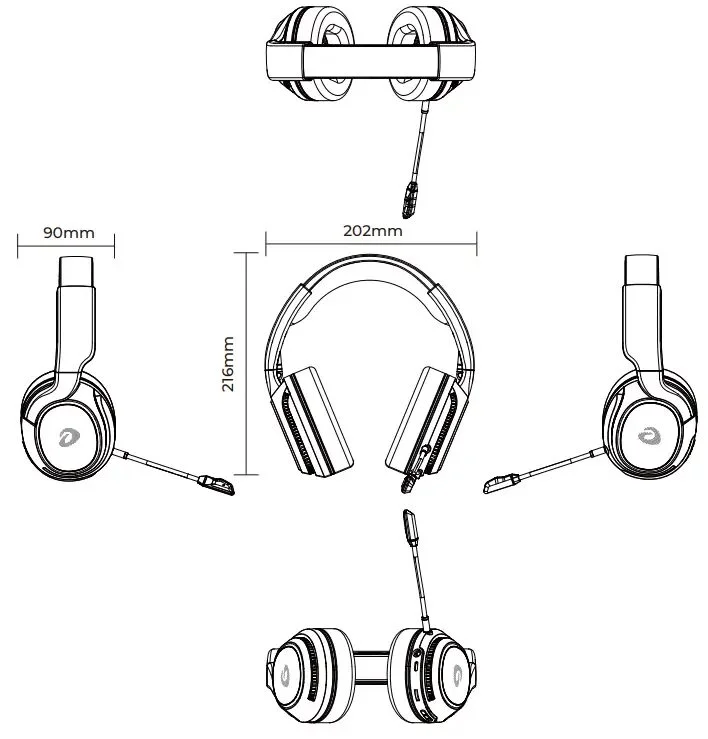

2. Technical Specifications

Hướng dẫn sử dụng tai nghe không dây DAREU A710

Product Specifications

Physical SpecificationsBattery Capacity: 1400mAhWeight: 345gBacklight: RGBDetachable Microphone: YesDimensions: 202*216*90mm 3.5mm Cable Length: 1m (male to male)Type-C Cable Length: 1.2m (male to male) | Electronic SpecificationsPlay Mode: 5.8G/Type-C/3.5mmWireless Standard: 5.8GFrequency Range: 5725-5850MHzRF Range: 10M (unobstructed)Charging Voltage: DC 5V 500mACharging Time: approximately 4hOperating Time: approximately 10h (with backlight on)/approximately 12h (with backlight off)Standby Time: 3 months

Speaker SpecificationsDriver Unit: Φ50mm * 10mm (C)Sensitivity: 104dB ± 3dBImpedance: 24 ± 15% OHMFSound Frequency Response: 20 ~ 20KHzTotal Harmonic Distortion: ≦ 5%Power Rating: 10mW-15mW (max)Buzzing & Rating: sine wave 0.49VLoad Test: normal 10mW 24 hours | Microphone SpecificationsDriver Unit: φ6mm * 2.7mm (C)Sensitivity: -42 ± 3 dBDirectionality: omnidirectionalImpedance: 2.2KOMFrequency Response: 100~10KHzTotal Harmonic Distortion: ≦ 5%Operating Voltage: DC 1.0V ~ 10VCurrent Consumption: max 0.5mA

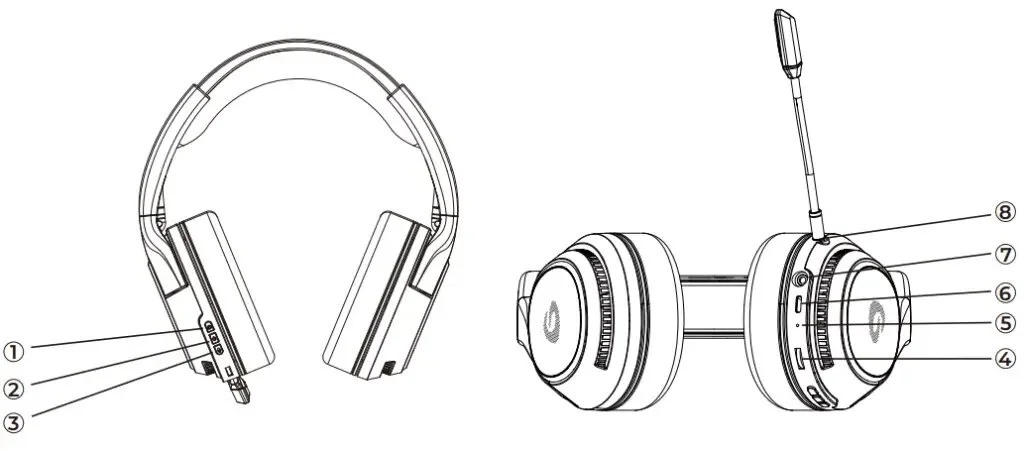

3. Button Functions

Hướng dẫn sử dụng tai nghe không dây DAREU A710
  1. Lighting Button
  2. Power Button
  3. Microphone Button
  4. Volume Button
  5. LED Indicator
  6. Type-C Port
  7. Audio Jack
  8. Microphone Jack

4. Connectivity

5.8G Pairing

  1. Insert the 5.8G transmitter into the device, the headset and the launcher will automatically pair.
  2. Press and hold the power button and microphone button for 3 seconds to start pairing, the LED indicator on the headset will flash rapidly in blue. After successful pairing, the LED indicator will remain lit.

Audio Cable
Use a 3.5mm audio cable to connect the headset directly to the playback device without turning on the power.

Button Function Details

  1. Power Button: Press and hold for 3 seconds, turn on with a beep; press and hold for 3 seconds, turn off with a beep.
  2. Lighting Button: RGB flow lighting effect and single-color breathing lighting effect (red, green, blue, purple).
  3. Microphone Button: Press once, turn on with two beeps, turn off with one beep.
  4. Volume Button: Scroll the button to increase or decrease volume.
  5. Low Battery: When the battery is low, the device will emit three beeps every minute.
  6. LED Indicator:
    ① Power On - Flashing Blue
    ② Red Flashing - Low Power
    ③ Charging - Flashing Red
    ④ Fully Charged - LED Off
    ⑤ Rapid Blue Flashing - 5.8G Pairing
  7. Select the play mode you want to use.
    ① Type-C to Type-C
    ② Type-C to USB
    ③ Sound Output Mode
    ④ 5.8G Wireless Mode

How to replace the ear pads

  1. Sew the seam at the bottom.
  2. Tie the string safely into the gap.
  3. Insert it into the gap.
  4. Gently turn it.
